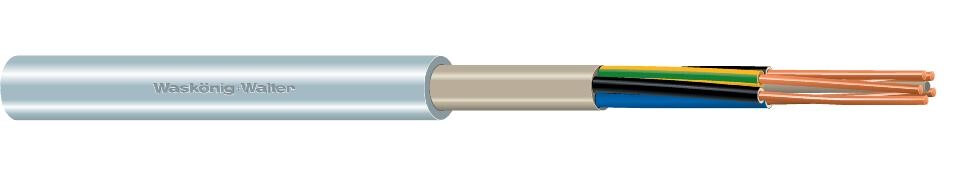

N1XZ1 Dca

Power cable, XLPE insulated, copper conductor, halogen free

N1XZ1 Dca

based upon VDE0276-604.. For fixed installation indoors, in air and in concrete. These cables are also suitable for outdoor use, provided they are protected from direct sunlight. Laying in the ground or in water is not permitted.

  • Variants
  • Downloads
  • Shorter and longer lengths
  • Number of cores

    Cross section conductor

    Technical features Product
    N1XZ1 Dca Dca 1G10 RM PE 1 10 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    10 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    1
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    9 mm
    Weight
    149.66
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 96
    Product No. Individual length Pallet unit Packing
    799008 Cut length Ring, Drum
    N1XZ1 Dca Dca 1G16 RM PE 1 16 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    16 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    1
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    214.95
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 154
    Product No. Individual length Pallet unit Packing
    799039 Cut length Ring, Drum
    799060 Cut length Ring, Drum
    N1XZ1 Dca Dca 3G1,5 RE 3 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    3
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    7 mm
    Weight
    78.26
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 43
    Product No. Individual length Pallet unit Packing
    349135 Cut length Ring, Drum
    474486 50 m 4,200 Ring
    357901 100 m 7,800 Ring
    452408 500 m 3,000 Drum
    N1XZ1 Dca Dca 3G1,5 (LNPE) RE 3 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    3
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    7 mm
    Weight
    78.64
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 43
    Product No. Individual length Pallet unit Packing
    501694 Cut length Ring, Drum
    443161 100 m 5,400 Ring
    642779 300 m 3,600 Drum
    500277 500 m 6,000 Drum
    504800 1000 m 12,000 Drum
    N1XZ1 Dca Dca 3G1,5 (2LPE) RE 3 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    3
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    7 mm
    Weight
    78.64
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 43
    Product No. Individual length Pallet unit Packing
    504770 Cut length Ring, Drum
    N1XZ1 Dca Dca 3G2,5 RE 3 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    3
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    8 mm
    Weight
    112.64
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Paletteinheit
    4,200 m
    Bruttogewicht pro Paletteinheit
    495.89 kg
    Metal number
    Copper 72
    Product No. Individual length Pallet unit Packing
    357918 100 m 4,200 Ring
    349166 500 m 3,000 Drum
    N1XZ1 Dca Dca 3G2,5 (LNPE) RE 3 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    3
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    8 mm
    Weight
    113.07
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Paletteinheit
    6,000 m
    Bruttogewicht pro Paletteinheit
    701.22 kg
    Metal number
    Copper 72
    Product No. Individual length Pallet unit Packing
    471607 100 m 6,000 Ring
    466375 500 m 6,000 Drum
    N1XZ1 Dca Dca 4G1,5 (3LPE) RE 4 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    4
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    8 mm
    Weight
    96.2
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 58
    Product No. Individual length Pallet unit Packing
    349258 Cut length Ring, Drum
    N1XZ1 Dca Dca 4G1,5 (2LNPE) RE 4 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    4
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    8 mm
    Weight
    96.2
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 58
    Product No. Individual length Pallet unit Packing
    507290 Cut length Ring, Drum
    549948 100 m 7,200 Ring
    649068 300 m 3,600 Drum
    N1XZ1 Dca Dca 4G2,5 (3LPE) RE 4 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    4
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    9 mm
    Weight
    140.14
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 96
    Product No. Individual length Pallet unit Packing
    349289 Cut length Ring, Drum
    N1XZ1 Dca Dca 5G1,5 RE 5 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    9 mm
    Weight
    117.12
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 72
    Product No. Individual length Pallet unit Packing
    349630 Cut length Ring, Drum
    474493 50 m 4,200 Ring
    357925 100 m 7,200 Ring
    452439 500 m 3,000 Drum
    N1XZ1 Dca Dca 5G1,5 (3LNPE) RE 5 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    9 mm
    Weight
    117.68
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 72
    Product No. Individual length Pallet unit Packing
    501700 Cut length Ring, Drum
    443222 100 m 7,200 Ring
    645091 300 m 3,600 Drum
    500284 500 m 6,000 Drum
    781713 500 m 3,000 Drum
    504718 1000 m 4,000 Drum
    501724 7500 m 7,500 Drum
    N1XZ1 Dca Dca 5G2,5 (3LNPE) RE 5 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    174.67
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 120
    Product No. Individual length Pallet unit Packing
    349661 Cut length Ring, Drum
    443192 100 m 3,000 Ring
    444977 500 m 2,000 Drum
    N1XZ1 Dca Dca 5G2,5 RE 5 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    174.03
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Paletteinheit
    4,200 m
    Bruttogewicht pro Paletteinheit
    753.73 kg
    Metal number
    Copper 120
    Product No. Individual length Pallet unit Packing
    484997 50 m 4,200 Ring
    357932 100 m 4,200 Ring
    452446 500 m 2,000 Drum
    N1XZ1 Dca Dca 5G4 RE 5 4 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    4 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    11 mm
    Weight
    252.79
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 192
    Product No. Individual length Pallet unit Packing
    349692 Cut length Ring, Drum
    797660 200 m 1,200 Drum
    722983 500 m 2,000 Drum
    N1XZ1 Dca Dca 5G4 (3LNPE) RE 5 4 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    4 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    11 mm
    Weight
    253.21
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 192
    Product No. Individual length Pallet unit Packing
    500116 Cut length Ring, Drum
    445653 100 m 3,600 Ring
    N1XZ1 Dca Dca 5G6 RE 5 6 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    6 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    13 mm
    Weight
    361.6
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 288
    Product No. Individual length Pallet unit Packing
    349722 Cut length Ring, Drum
    N1XZ1 Dca Dca 5G6 (3LNPE) RE 5 6 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    6 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    13 mm
    Weight
    362.16
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 288
    Product No. Individual length Pallet unit Packing
    445684 Cut length Ring, Drum
    631063 50 m 2,400 Ring
    500147 100 m 2,400 Ring
    N1XZ1 Dca Dca 5G6 RM 5 6 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    6 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    14 mm
    Weight
    375.42
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 288
    Product No. Individual length Pallet unit Packing
    465941 Cut length Ring, Drum
    466283 250 m 1,500 Drum
    466276 500 m 2,000 Drum
    806614 2500 m 2,500 Drum
    N1XZ1 Dca Dca 5G10 RM 5 10 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    10 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    17 mm
    Weight
    623.8
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 480
    Product No. Individual length Pallet unit Packing
    349753 Cut length Ring, Drum
    730315 250 m 250 Drum
    806607 1500 m 1,500 Drum
    N1XZ1 Dca Dca 5G10 RM (3LNPE) 5 10 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    10 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    17 mm
    Weight
    624.69
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 480
    Product No. Individual length Pallet unit Packing
    445004 Cut length Ring, Drum
    N1XZ1 Dca Dca 5G16 RM 5 16 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    16 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    20 mm
    Weight
    932.24
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 768
    Product No. Individual length Pallet unit Packing
    349784 Cut length Ring, Drum
    806584 Cut length Ring, Drum
    730322 250 m 250 Drum
    N1XZ1 Dca Dca 5G16 RM (3LNPE) 5 16 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    16 mm²
    Conductor category
    Class 2 = stranded
    Shape of conductor
    Round
    Number of cores
    5
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    20 mm
    Weight
    931.92
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 768
    Product No. Individual length Pallet unit Packing
    445233 Cut length Ring, Drum
    N1XZ1 Dca Dca 6G1,5 RE 6 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    6
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    156.52
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 86.4
    Product No. Individual length Pallet unit Packing
    361601 Cut length Ring, Drum
    N1XZ1 Dca Dca 6G1,5 (5LPE) RE 6 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    6
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    157.24
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 86.4
    Product No. Individual length Pallet unit Packing
    445066 Cut length Ring, Drum
    N1XZ1 Dca Dca 6G1,5 (4LNPE) RE 6 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    6
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    156.52
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 86.4
    Product No. Individual length Pallet unit Packing
    446582 Cut length Ring, Drum
    630882 100 m 4,200 Ring
    N1XZ1 Dca Dca 7G1,5 RE 7 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    7
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    167.32
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 101
    Product No. Individual length Pallet unit Packing
    356195 Cut length Ring, Drum
    N1XZ1 Dca Dca 7G1,5 RE (6LPE) 7 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    7
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    167.73
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 101
    Product No. Individual length Pallet unit Packing
    445035 Cut length Ring, Drum
    N1XZ1 Dca Dca 7G1,5 RE (5LNPE) 7 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    7
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    No
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    10 mm
    Weight
    167.73
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 101
    Product No. Individual length Pallet unit Packing
    446636 Cut length Ring, Drum
    630899 100 m 4,200 Ring
    N1XZ1 Dca Dca 7G2,5 RE (6LPE) 7 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    7
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    12 mm
    Weight
    240.57
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 168
    Product No. Individual length Pallet unit Packing
    424498 Cut length Ring, Drum
    N1XZ1 Dca Dca 7G2,5 RE 7 2.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    7
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    12 mm
    Weight
    240.4
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 168
    Product No. Individual length Pallet unit Packing
    732142 Cut length Ring, Drum
    N1XZ1 Dca Dca 8G1,5 (7LPE) RE 8 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    8
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    11 mm
    Weight
    189.08
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 115.2
    Product No. Individual length Pallet unit Packing
    445097 Cut length Ring, Drum
    N1XZ1 Dca Dca 8G1,5 (6LNPE) RE 8 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    8
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    11 mm
    Weight
    189.08
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 115.2
    Product No. Individual length Pallet unit Packing
    446674 Cut length Ring, Drum
    630905 100 m 3,600 Ring
    N1XZ1 Dca Dca 10G1,5 RE 10 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    10
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    12 mm
    Weight
    232.78
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Metal number
    Copper 144
    Product No. Individual length Pallet unit Packing
    361717 Cut length Ring, Drum
    N1XZ1 Dca Dca FE0 10G1,5 (9LPE) RE 10 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    10
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    12 mm
    Weight
    233.35
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Paletteinheit
    2,400 m
    Bruttogewicht pro Paletteinheit
    582.84 kg
    Metal number
    Copper 144
    Product No. Individual length Pallet unit Packing
    630912 100 m 2,400 Ring
    N1XZ1 Dca Dca FE0 10G1,5 (8LNPE) RE 10 1.5 mm²
    Conductor material
    Copper
    Conductor surface
    Bare
    Nominal cross section conductor
    1.5 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Round
    Number of cores
    10
    Core identification according to HD 308 S2
    Yes
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    Yes
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    None
    Armouring
    No
    Material outer sheath
    Polyolefin
    Specification material outer sheath
    Polyethylene (PE)
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Dca
    Reaction-to-fire according to EN 13501-6: Smoke production
    s2
    Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d2
    Reaction-to-fire according to EN 13501-6: Acidity
    a1
    Halogen free (acc. EN 60754-1/2)
    Yes
    Flame retardant
    In accordance with IEC/EN 60332-3-24
    Low smoke (acc. EN 61034-2)
    Yes
    Outer diameter approx.
    12 mm
    Weight
    233.35
    Max. conductor temperature
    90 °C
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    -40 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    250 °C
    Insulation
    XLPE (VPE)
    Minimum bending radius
    8 x Außen-Ø
    Paletteinheit
    2,400 m
    Bruttogewicht pro Paletteinheit
    582.84 kg
    Metal number
    Copper 144
    Product No. Individual length Pallet unit Packing
    640010 100 m 2,400 Ring
  • Title Language
    Datasheet
    Declaration of Performance
  • We can supply you with shorter lengths and longer lengths of the many cables our company offers, which are available right now in the lengths listed. An additional advantage for you: We offer a price discount on each agreed base price/price without metal on our shorter and longer length cables when purchasing the complete length.

    If you have any queries in this regard, please feel free to get in touch with your usual contact. Together, we will find the right cable solution for your application. You can directly access our current offers for shorter/longer lengths here.

    To shorter and longer lengths "N1XZ1 Dca"
