V-VMvKsas

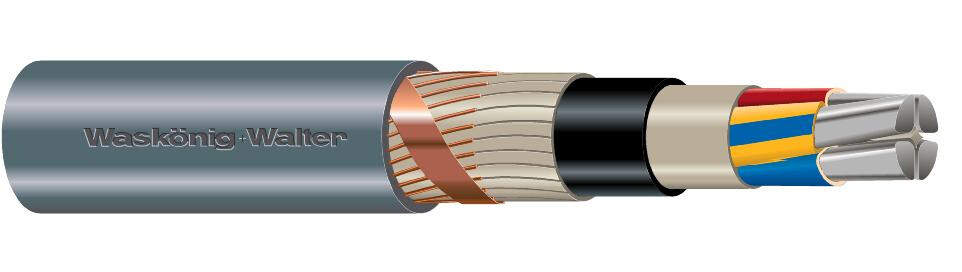

Power cable, PVC insulated, aluminium conductor, concentric copper conductor wave-form

V-VMvKsas

According to NEN 3616.

  • Variants
  • Downloads
  • Shorter and longer lengths
  • Number of cores

    Cross section conductor

    Technical features Product
    V-VMvKsas 4X50 SE/25 (EVU)1 KV 4 50 mm²
    Conductor material
    Aluminium
    Conductor surface
    Bare
    Nominal cross section conductor
    50 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Sector-shaped
    Number of cores
    4
    Core identification
    Colour
    Protective conductor
    No
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    Copper
    Nominal cross section concentric conductor
    25 mm²
    Armouring
    No
    Material outer sheath
    Polyvinyl chloride (PVC)
    Specification material outer sheath
    Other
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    In accordance with IEC/EN 60332-1-2
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    35 mm
    Min. permitted bending radius, stationary application/permanent installation
    420 mm
    Weight
    1,872.5
    Max. conductor temperature
    70 °C
    Permitted cable outer temperature during assembling/handling
    -2 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    160 °C
    Insulation
    PVC
    Minimum bending radius
    12 x Außen-Ø
    Metal number
    Aluminium 580, Copper 283
    Product No. Individual length Pallet unit Packing
    190898 Cut length Ring, Drum
    V-VMvKsas 4X95SE/35 (EVU)1 KV 4 95 mm²
    Conductor material
    Aluminium
    Conductor surface
    Bare
    Nominal cross section conductor
    95 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Sector-shaped
    Number of cores
    4
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    No
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    Copper
    Nominal cross section concentric conductor
    35 mm²
    Armouring
    No
    Material outer sheath
    Polyvinyl chloride (PVC)
    Specification material outer sheath
    Other
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    In accordance with IEC/EN 60332-1-2
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    44 mm
    Min. permitted bending radius, stationary application/permanent installation
    540 mm
    Weight
    3,089.8
    Max. conductor temperature
    70 °C
    Permitted cable outer temperature during assembling/handling
    -2 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    160 °C
    Insulation
    PVC
    Minimum bending radius
    12 x Außen-Ø
    Metal number
    Aluminium 1102, Copper 394
    Product No. Individual length Pallet unit Packing
    173228 Cut length Ring, Drum
    803231 125 m 125 Drum
    V-VMvKsas 4X150 SE/50 (EVU)1 KV 4 150 mm²
    Conductor material
    Aluminium
    Conductor surface
    Bare
    Nominal cross section conductor
    150 mm²
    Conductor category
    Class 1 = solid
    Shape of conductor
    Sector-shaped
    Number of cores
    4
    Core identification
    Colour
    Laminated sheath
    No
    Fibre optic elements
    No
    Protective conductor
    No
    Inner semi-conducting layer
    No
    Outer semi-conducting layer
    No
    Screen
    No
    Concentric conductor
    Copper
    Nominal cross section concentric conductor
    50 mm²
    Armouring
    No
    Material outer sheath
    Polyvinyl chloride (PVC)
    Specification material outer sheath
    Other
    Colour outer sheath
    Grey
    Conductive coating
    No
    Longitudinal water blocking conductors
    Yes
    Longitudinal water blocking screen
    No
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    In accordance with IEC/EN 60332-1-2
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    51 mm
    Min. permitted bending radius, stationary application/permanent installation
    612 mm
    Weight
    4,183.4
    Max. conductor temperature
    70 °C
    Permitted cable outer temperature during assembling/handling
    -2 <=> 70 °C
    Nominal voltage U0
    0.6 kV
    Nominal voltage U
    1 kV
    max. short circuit temperature
    160 °C
    Insulation
    PVC
    Minimum bending radius
    12 x Außen-Ø
    Metal number
    Aluminium 1740, Copper 560
    Product No. Individual length Pallet unit Packing
    181322 Cut length Ring, Drum
