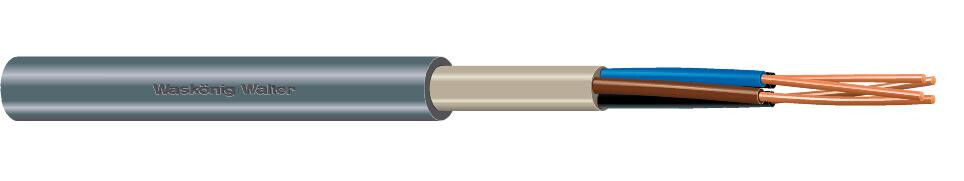

XMvK-N

Installation cable, XLPE insulated

XMvK-N

According to KEMA K42-C 07-1,2,3.

  • Variants
  • Downloads
  • Shorter and longer lengths
  • Number of cores

    Cross section conductor

    Technical features Product
    XMvK-N 2X1,5 RE 2 1.5 mm²
    Conductor material
    Copper
    Nominal cross section conductor
    1.5 mm²
    Conductor Diameter
    1.5 mm
    Conductor category
    Class 1 = solid
    Conductor resistance at 20 °C
    12.1
    Number of cores
    2
    Core insulation material
    Polyolefin
    Core identification according to HD 308 S2
    Yes
    Protective conductor
    No
    Max. conductor temperature
    90 °C
    Screen
    No
    Armouring/reinforcement
    None
    Material outer sheath
    Polyvinyl chloride (PVC)
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    In accordance with IEC/EN 60332-1-2
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    9 mm
    Permitted cable outer temperature after assembling without vibration
    -5 <=> 70 °C
    Nominal voltage U0
    450 V
    Nominal voltage U
    750 V
    Shape of conductor
    Round
    Suitable as installation cable
    Yes
    Certified for shipboard application
    No
    Suitable as medium-voltage cable
    No
    Suitable as high-voltage cable
    No
    Certified as airport lighting cable
    No
    Weight
    96.8
    Minimum bending radius
    12 x Außen-Ø
    max. short circuit temperature
    250 °C
    Paletteinheit
    6,000 m
    Bruttogewicht pro Paletteinheit
    603.6 kg
    Metal number
    Copper 29
    Product No. Individual length Pallet unit Packing
    777716 100 m 6,000 Ring
    261741 500 m 6,000 Drum
    XMvK-N 2x2,5 RE 2 2.5 mm²
    Conductor material
    Copper
    Nominal cross section conductor
    2.5 mm²
    Conductor category
    Class 1 = solid
    Conductor resistance at 20 °C
    7.41
    Number of cores
    2
    Core insulation material
    Polyolefin
    Core identification according to HD 308 S2
    Yes
    Protective conductor
    No
    Max. conductor temperature
    90 °C
    Screen
    No
    Armouring/reinforcement
    None
    Material outer sheath
    Polyvinyl chloride (PVC)
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    In accordance with IEC/EN 60332-1-2
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    9 mm
    Permitted cable outer temperature after assembling without vibration
    -5 <=> 70 °C
    Nominal voltage U0
    450 V
    Nominal voltage U
    750 V
    Shape of conductor
    Round
    Suitable as installation cable
    Yes
    Certified for shipboard application
    No
    Suitable as medium-voltage cable
    No
    Suitable as high-voltage cable
    No
    Certified as airport lighting cable
    No
    Weight
    125.06
    Minimum bending radius
    12 x Außen-Ø
    max. short circuit temperature
    250 °C
    Metal number
    Copper 48
    Product No. Individual length Pallet unit Packing
    261864 Cut length Ring, Drum
    282357 100 m 6,000 Ring
    299362 500 m 6,000 Drum
