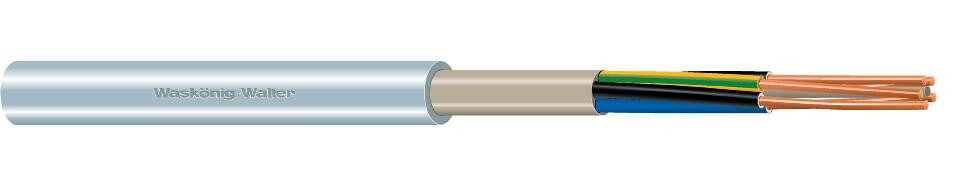

PXILD

Installation cable, XLPE insulated, copper conductor, lead free

PXILD

based upon K42-C 07-1;2;3. Electricity supply in buildings and other buildings, with the target to limit the creation and spread of fire and smoke

  • Variants
  • Downloads
  • Shorter and longer lengths
  • Number of cores

    Cross section conductor

    Technical features Product
    PXILD 3G1,5 BF 3 1.5 mm²
    Conductor material
    Copper
    Nominal cross section conductor
    1.5 mm²
    Conductor Diameter
    1.5 mm
    Conductor category
    Class 1 = solid
    Conductor resistance at 20 °C
    12.1
    Number of cores
    3
    Core insulation material
    Polyolefin
    Core identification according to HD 308 S2
    Yes
    Core colour
    Protective conductor
    Yes
    Max. conductor temperature
    90 °C
    Screen
    No
    Armouring/reinforcement
    None
    Material outer sheath
    Polyvinyl chloride (PVC)
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    No
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    9 mm
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    15 <=> 70 °C
    Nominal voltage U0
    450 V
    Nominal voltage U
    750 V
    Shape of conductor
    Round
    Suitable as installation cable
    Yes
    Certified for shipboard application
    No
    Suitable as medium-voltage cable
    No
    Suitable as high-voltage cable
    No
    Certified as airport lighting cable
    No
    Weight
    102.34
    Minimum bending radius
    12 x Außen-Ø
    max. short circuit temperature
    250 °C
    Paletteinheit
    3,740 m
    Bruttogewicht pro Paletteinheit
    405.55 kg
    Metal number
    Copper 43
    Product No. Individual length Pallet unit Packing
    642823 20 m 3,740 Ring
    606146 30 m 5,280 Ring
    594641 35 m 5,390 Ring
    586998 50 m 5,100 Ring
    PXILD 5G1,5 BF 5 1.5 mm²
    Conductor material
    Copper
    Nominal cross section conductor
    1.5 mm²
    Conductor Diameter
    1.5 mm
    Conductor category
    Class 1 = solid
    Conductor resistance at 20 °C
    12.1
    Number of cores
    5
    Core insulation material
    Polyolefin
    Core identification according to HD 308 S2
    Yes
    Core colour
    Protective conductor
    Yes
    Max. conductor temperature
    90 °C
    Screen
    No
    Armouring/reinforcement
    None
    Material outer sheath
    Polyvinyl chloride (PVC)
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    No
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    10 mm
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    15 <=> 70 °C
    Nominal voltage U0
    450 V
    Nominal voltage U
    750 V
    Shape of conductor
    Round
    Suitable as installation cable
    Yes
    Certified for shipboard application
    No
    Suitable as medium-voltage cable
    No
    Suitable as high-voltage cable
    No
    Certified as airport lighting cable
    No
    Weight
    142.5
    Minimum bending radius
    12 x Außen-Ø
    max. short circuit temperature
    250 °C
    Paletteinheit
    4,500 m
    Bruttogewicht pro Paletteinheit
    664.05 kg
    Metal number
    Copper 72
    Product No. Individual length Pallet unit Packing
    586967 50 m 4,500 Ring
    PXILD 5G2,5 BF 5 2.5 mm²
    Conductor material
    Copper
    Nominal cross section conductor
    2.5 mm²
    Conductor Diameter
    2.5 mm
    Conductor category
    Class 1 = solid
    Conductor resistance at 20 °C
    7.41
    Number of cores
    5
    Core insulation material
    Polyolefin
    Core identification according to HD 308 S2
    Yes
    Core colour
    Protective conductor
    Yes
    Max. conductor temperature
    90 °C
    Screen
    No
    Armouring/reinforcement
    None
    Material outer sheath
    Polyvinyl chloride (PVC)
    Colour outer sheath
    Grey
    Reaction-to-fire according to EN 13501-6: Class
    Eca
    Halogen free (acc. EN 60754-1/2)
    No
    Flame retardant
    No
    Low smoke (acc. EN 61034-2)
    No
    Outer diameter approx.
    11 mm
    Permitted cable outer temperature during assembling/handling
    5 <=> 70 °C
    Permitted cable outer temperature after assembling without vibration
    15 <=> 70 °C
    Nominal voltage U0
    450 V
    Nominal voltage U
    750 V
    Shape of conductor
    Round
    Suitable as installation cable
    Yes
    Certified for shipboard application
    No
    Suitable as medium-voltage cable
    No
    Suitable as high-voltage cable
    No
    Certified as airport lighting cable
    No
    Weight
    196
    Minimum bending radius
    12 x Außen-Ø
    max. short circuit temperature
    250 °C
    Paletteinheit
    2,700 m
    Bruttogewicht pro Paletteinheit
    552 kg
    Metal number
    Copper 120
    Product No. Individual length Pallet unit Packing
    587025 50 m 2,700 Ring
